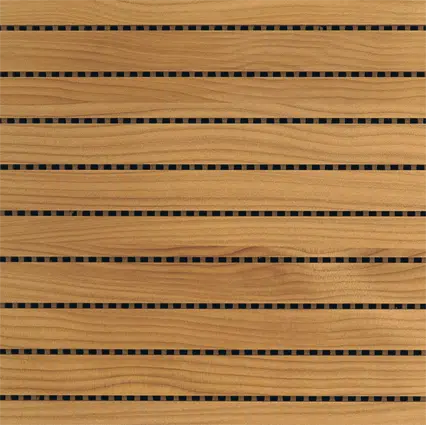

Wooden Acoustic Panels
Wooden Acoustic Panels have longitudinal grooves and slats, machined along the length of the panel.These panels consists of a laminate finished surface, base core board(16mm or 18mm thick Medium Density Fiberboard) and black acoustic felt attached on the back.
In many spaces, flat reflective surfaces can cause interfering reflections and excessive reverberation which can corrupt work environments, meeting and gathering areas, music quality and speech intelligibility to name a few. One of the most attractive approaches to controlling noise, sound reflections and excess reverberation is to utilize sound absorbing natural wood wall and ceiling panels. Although the materials and methods used to control the acoustics within an environment have advanced, the basic principle of sound absorption has not changed — converting sound energy into heat energy.
AKINCO Wooden panels are powerful union between architecture and acoustical performance. Utilizing bold 3-4mm grooves in a high recycled content, Class A fire rated, ULEF and FSC certified wood plank, our grooved panels achieves up to an NRC=0.80 while maintaining the ambiance of the space with reflections at the highest frequencies.
Features
- Configurations available for NRC = 0.80
- Offers reflection and reverberation control in a beautiful millwork finish.
- Available in sizes 197mm x 2440mm , thickness 15mm and 18mm
- Choose from any commercially available wood veneers, laminates or paint colors.
- Decorative and easy to install with Metal profile and Clip system
- Can be integrated with several standard grids for ceiling mounting.
- Panel cores are high recycled content, ULEF, Class A Fire Rated and FSC certified.
Areas of applications
- Restaurant Acoustics, Office Acoustics, Hotel Lobby and Banquet Hall Acoustics
- Church Acoustics, Classroom Acoustics, Auditorium Acoustics, Lecture Hall Acoustics
- Home Theater Acoustics, Recording Studio Acoustics, Entertainment Facility Acoustics

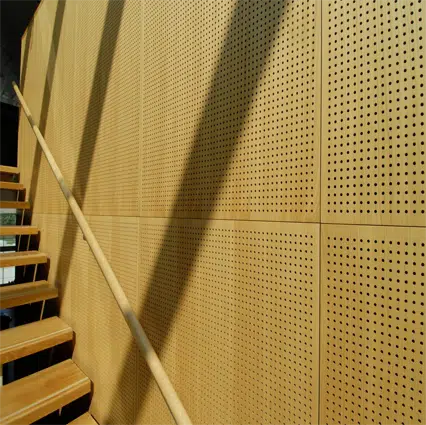

Perforated Acoustic Panels
Perforated panels are the most economical way to get an acoustic treatment with a high degree of absorption. With several variations of patterns and hole diameters, different levels of absorption and aesthetic results can be achieved.
Constructed from 12mm to 18mm thick medium density fiberboard (MDF) core, with a choice of natural veneer, laminate or paint finishes to the face. Perforated panels can be used for wall or ceiling applications.

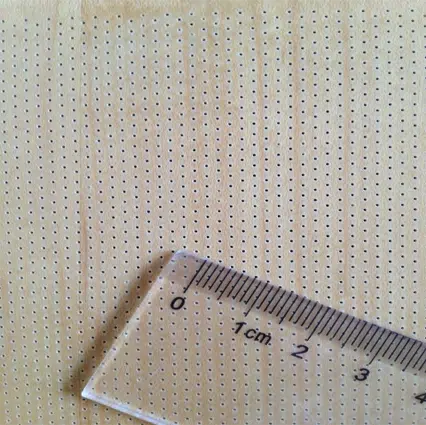

Holes can vary in diameter and centers yet perform well acoustically. Perforated panels are available in standard sizes of 600mm x 600mm and 1200mm x 600mm. Other sizes are available on request.
The perforation in the wood facing allows the panel to achieve NRC values as high as 1.00. The panels are built on a MDF or chipboard core and are offered with your choice of 24 standard wood veneer facings and 40 custom veneers. These wooden wall panels are Class A fire-rated and are easily installed by the attachment of nail clips onto furring strips.
